Name：Polypropylene HPP Foldable Filter Cartridge (Rod)

Product Introduction：

Product Introduction: Polypropylene HPP Folding Filter Cartridge (Rod)

The polypropylene HPP folding filter cartridge (rod) is a fixed type deep filter that can meet various pressure and particle filtration requirements. The entire structure is made of pure polypropylene and does not use surfactants or adhesives. The product has a wide range of chemical applicability, with nominal pore sizes ranging from 60um to 0.1um, especially suitable for filtration and clean filtration, and has low medium shedding and high flux long life.

Characteristics of polypropylene HPP folding filter cartridge (rod):

1. Extremely wide chemical applicability.

2. Using hot melt welding, there will be no detachment of adhesive material.

3. The structural materials can meet the requirements of domestic and international plastic biotechnology

4. Safety testing requirements.

5. It can be sterilized by high-pressure cleaning pot and steam.

Operating characteristics of polypropylene HPP folding filter cartridge (rod):

Operating temperature: 88 ° C at 0.38MPa, 60 ° C at 0.414MPa

Continuous operating pressure: depends on the casing

Positive pressure difference: 0.4MPa at 25 ° C

Reverse pressure difference: 0.35MPa at 25 ° C

High pressure sterilization pot sterilization: disinfect for 20 minutes at 0.1MPa and 121 ° C

Steam sterilization: 134 ° C for 60 minutes

Positive pressure resistance: 0.40MPa

Reverse pressure resistance: 0.20MPa

Aperture: 0.1um, 0.2um, 0.45um, 1.0um, 3.0um, 5.0um, 10um, 30um, 60um

Typical applications of polypropylene HPP folding filter cartridge (rod):

Electronic industry: pre filtration of reverse osmosis water systems, pre filtration and precision filtration of deionized water, filtration of chemical reagents, photographic reagents, electrolytes, magnetic media, and general production process solutions.

Hospital industry: filtration of pharmaceuticals, biological products, serum, compressed air, and various gases.

Beverages: Filtration of beverages and syrup.

Chemicals: organic solvents, inks.

Electroplating plate: Precision filtration of electroplating plate solution.

Polypropylene HPP folding filter cartridge (rod) specifications, structural materials

Filter medium: Polypropylene

Supporting material: Polypropylene

Structural component: Polypropylene

Sealing method: Hot melt welding

Diameter: 6.9cm (2.7 inches)

Nominal length 25.4, 50.8, 76.2, 101.6cm, 12.7cm

(10, 20, 30, 40, 5 inches)

Effective filtration area: (10 inch long filter) 0.6 square meters

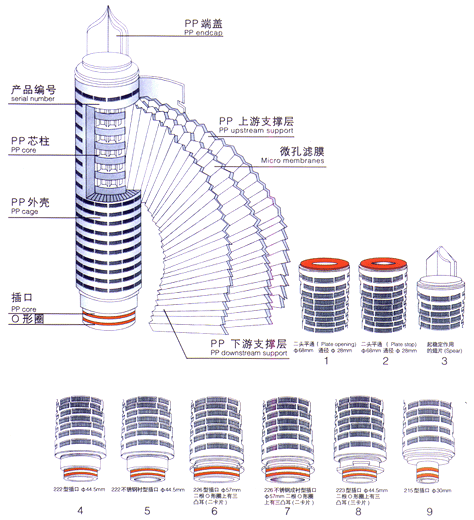

Schematic diagram of polypropylene HPP folding filter cartridge (rod):
