Name：Explosion proof motor pump

Product Introduction：

Explosion proof motor pump product description:

Sucking liquid (medium)

A liquid that is thin, clean, non condensable, non explosive, and does not contain solid particles or fibers. Except in rare cases (exceptions), HQ-E pumps are capable of pumping a variety of liquids, such as demineralized water, softened water, purified solutions, light oils, and other light chemicals.

Action conditions

Liquid temperature: -15 ℃ to+110 ℃

Environmental temperature:+40 ℃

Action pressure: 0.5MPa

The suction pressure is limited by the maximum operating pressure.

Shaft seals and rubber components can be selected according to their intended use.

When suctioning liquids with temperatures above+80 ℃, it is best to use carbon (graphite)/tungsten carbide shaft seals.

If the suction liquid contains abrasive particles, a silicon carbide (diamond)/silicon carbide shaft seal should be used.

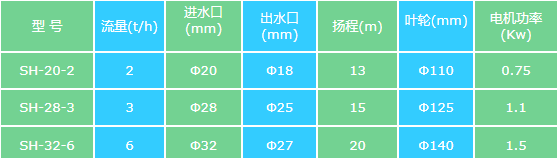

Explosion proof motor pump model and technical parameters:
