Name：Stainless steel high-capacity activated carbon filter (machine)

Product Introduction：

Stainless steel high-capacity activated carbon filter (machine) product introduction:

Liquid solid separation is one of the essential unit operations in industries such as chemical, pharmaceutical, and food. After conducting research on the powdered activated carbon filtration equipment industry in China's pharmaceutical and chemical industries, it was found that the powdered activated carbon decolorization filtration equipment used in the production of raw materials and formulations is outdated and backward. For this reason, our company's researchers have successfully developed the SHK plate filter.

At present, the filter produced by our company has been used in the pharmaceutical and chemical industry with good filtering effect. The SHKI-II filter machine consists of a cylinder, a filter liquid plate, a visual system, a bidirectional compression device, and a circulation pipeline system. Open the feed valve, start filtering, and the filtrate will be transported to the designated storage tank.

Working principle of stainless steel high-capacity activated carbon filter (machine):

The slurry is pumped into the filter, and after the upper emptying valve shows that the slurry is full of the filter, the feeding is stopped. Open the circulation pipeline system to circulate the slurry in the filter body, monitor the environment, and when the visual inspection meets the quality requirements, close the circulation pipeline system, open the feed valve, start filtering, and the filtrate is transported to the designated storage tank. There are two types of filters: Type I and Type II. Type I is insulation filtration or high-temperature filtration.

Stainless steel high-capacity activated carbon filter (machine) product features:

1. The bidirectional compression structure eliminates leakage phenomena;

2. High production efficiency and high clarity of filtrate;

3. The unique circulation system shortens the filtration cycle;

4. Meet the requirements of GMP standards in the pharmaceutical industry;

5. Low labor intensity and small footprint;

6. Filter cloth, filter paper, filter membrane, sintered metal felt, etc. can be used as filter media.

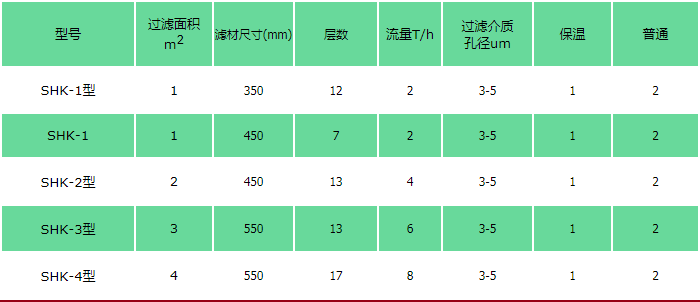

Specifications and technical data:
